50/80CFM 6" Recessed Fan

with 5-Level LED Lighting

Performance: 50/80 CFM, 0.3/0.9 sones (selectable)

For Rooms: for 60-99 sq ft rooms

Part #: RVRL5080

LED Lighting: Adjustable (2.7K, 3K, 3.5K, 4K, or 5K), dimmable

Buy

$295.00

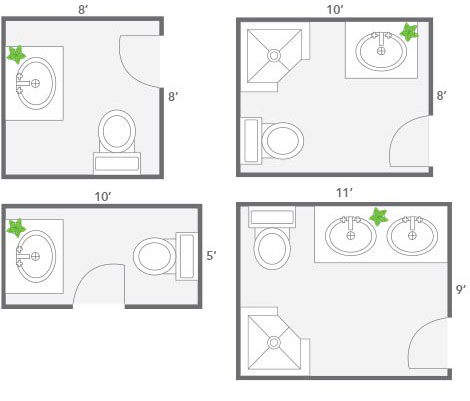

RVRL5080 Bath Fan Suggested Rooms

Suggested Rooms

60-99 sq ft rooms

HALF BATH - Commonly referred to as a powder room or water closet, half bathrooms consist of a toilet and a sink. This bathroom is a low humidity area where the ventilation fan is primarily used to exhaust odor.

THREE-QUARTER BATH - A three-quarter bathroom is a small to medium sized bathroom commonly housing a vanity, toilet, and either a shower or a bath tub. This bathroom is normally found off a main living area in your home and is often referred to as a guest or common bathroom. This room sees higher levels of humidity and therefore will need a larger CFM model. We would recommend Humidity Protection for commonly used rooms.

















Installation

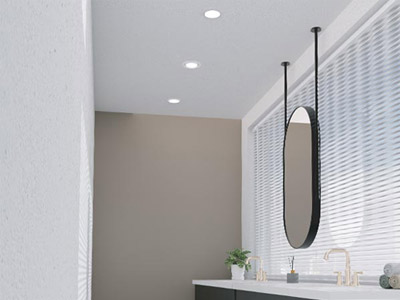

• Blends seamlessly with other recessed lighting

• Quick, easy mounting clips

• Ceiling or wall mounted




















performance at 4" ducting
Static Pressure
(in wg)
Airflow
(cfm)
Sound
(sones)
Energy
(watts)
Duct
Size
0.1 50 0.3 19.2 4 in
0.25 35   18.2 4 in
0.1 80 0.9 25.2 4 in
0.25 62   24.4 4 in
3 year warranty, May be used to comply with ASHRAE 62.2, Title 24, Energy Star, HVI 2100, ETL
Specifications Model RVRL5080
Exhaust Diameter 4 in (10.2 cm)
Voltage 120 Volts
Frequency 60 Hertz
Power 19.2/25.2 Watts
Air Flow at 0.1 CW 50/80 CFM
Noise 0.3/0.9 Sone
LED Brightness 900 Lumens at 4000 Kelvin
LED Color Temp 2700, 3000, 3500, 4000, or 5000 Kelvin
LED Power 13 Watts

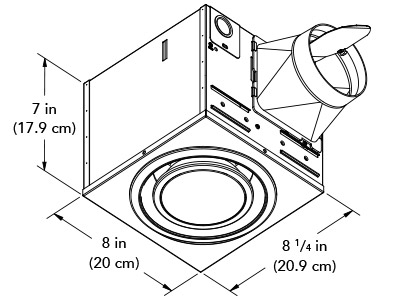

Opening Size 6 in (15.2 cm)
Housing Length 8 ⅛ in (20.6 cm)
Housing Width 8 ⅛ in (20.6 cm)
Housing Depth 7 ⅛ in (18.1 cm)





Product Manual

Adobe Reader PDF

ReVent 50/80 CFM 6" Recessed Light Ventilation Fan

Model RVRL5080 | English/Spanish/French



Specification Sheet
